Product Description

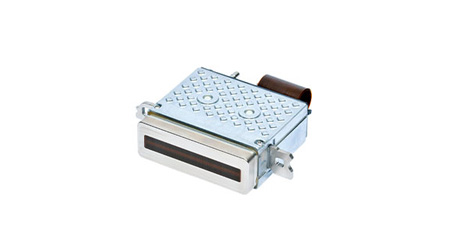

This Toshiba CF1BXL printhead is suitable for printers such as Mimaki UJF Series. This is the original Toshiba part number CF1BXL.
Features
Ink circulation in the head prevents ink from staying in pressure chambers and keeps constant supply of ink.
With this feature, CF1BXL offers a structual solution to the challenges of conventional inkjets.
CF1BXL is an inkjet head that offers a long-awaited solution of enhancing jetting reliability, and its print quality well fits a wide range of application from transpromotional, label & packaging to sign & graphics.
In particular, CF1BXL demonstrates its full merit for a singlepass printing where reliability is a top priority.
Product Specification
| MODEL | CF1BXL | ||
|---|---|---|---|
| Print method | On-demand piezo technology | ||
| Ink recirculation structure | Ink recirculation through all channels | ||
| Print width | 53.7 mm | ||
| Number of nozzles | 636 | ||
| Nozzle resolution | 300 npi | ||
| Number of rows | 2 | ||
| Nozzle spacing (row-to-row distance) | 4.64 mm | ||
| Greyscale levels | 7 levels/0～6 drops | ||
| Drop volume | 36～180 pL | ||
| Frequency | 4.8 kHz/6 drops | ||
| Ink type | UV-curing & oil-based (consult us for compatibility assurance) | ||
| Built-in temperature sensor | Included | ||
| Head cooling method | Air-cooling | ||
| Size, weight | 94.1 mm (W) × 26 mm (D) × 79 ｍｍ (H), 161 g | ||
