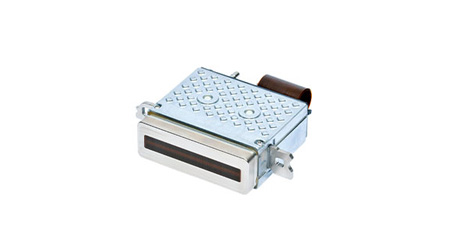

Toshiba CF1BL Printhead

item #194515096

$1,485.55

Product Description

This Toshiba CF1BL printhead is suitable for printers such as Mimaki UJF Series. This is the original Toshiba part number CF1BL.

Features

Ink circulation in the head prevents ink from staying in pressure chambers and keeps constant supply of ink.
With this feature, CF1BL offers a structual solution to the challenges of conventional inkjets.

CF1BL is an inkjet head that offers a long-awaited solution of enhancing jetting reliability, and its print quality well fits a wide range of application from transpromotional, label & packaging to sign & graphics.
In particular, CF1BL demonstrates its full merit for a singlepass printing where reliability is a top priority.

Product Specification

MODEL	CF1BL
Print method	On-demand piezo technology
Ink recirculation structure	Ink recirculation through all channels
Print width	53.7 mm
Number of nozzles	636
Nozzle resolution	300 npi
Number of rows	2
Nozzle spacing (row-to-row distance)	4.64 mm
Greyscale levels	4 levels/0,5,6,7 drops
Drop volume	57～80 pL
Frequency	4.8 kHz/7 drops
Ink type	UV-curing & oil-based (consult us for compatibility assurance)
Built-in temperature sensor	Included
Head cooling method	Air-cooling
Size, weight	94.1 mm (W) × 26 mm (D) × 79 ｍｍ (H), 161 g
