This is the original Mimaki part (number M022625 replacing M017004 and M015028).
  • This is the original Mimaki part (number M022625 replacing M017004 and M015028).
  • This is the original Mimaki part (number M022625 replacing M017004 and M015028).

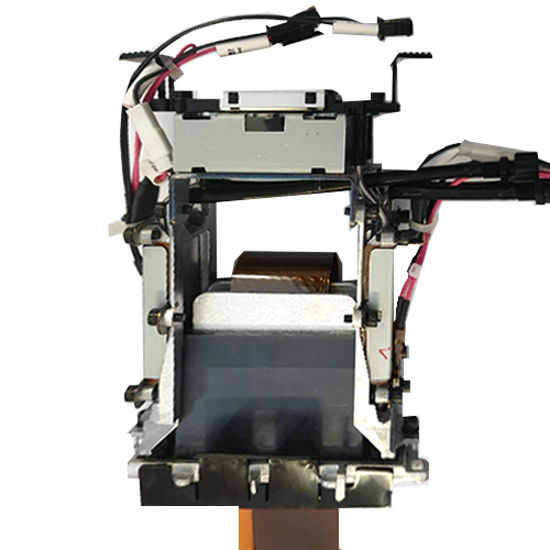

JFX200-2513 Head for Maintenance Assy (incl. Heater) - M022625

item #194569933

$1,349.19
Quantity:


Product Description

This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M022625 replacing M017004 and M015028).

Printer compatibility

Mimaki JFX200-2513

Product Specification

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle
