This is the original Mimaki part (number M012639).
  • This is the original Mimaki part (number M012639).

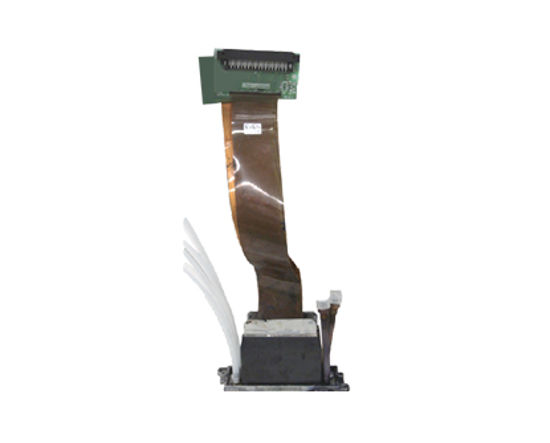

SWJ-320 GEN5 Assy Packaging - M012639

item #194583153

$1,553.96
Quantity:


Product Description

This GEN5 (MH5420/5440) Assy Packaging is suitable for Mimaki SWJ-320 printers. This is the original Mimaki part (number M012639). This packaging contains the assembly including tubes, valves, ink connectors and brackets.

Printer compatibility

Mimaki SWJ-320

Product Specification

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle
