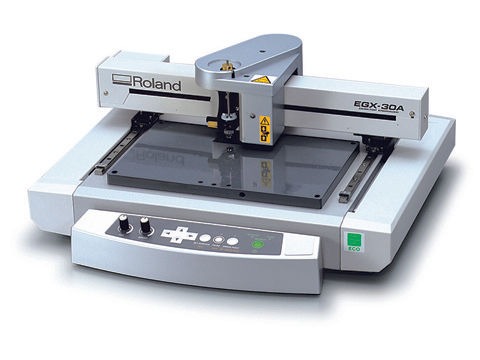

Roland EGX-30A Desktop Rotary Engraver

item #19457785

$2,095.00

Product Description

EGX-30A Desktop Rotary Engraver

Cost-effective and easy to use
Convenient 12" by 8" work area
Bundled with engraving software and tools

Distinguishing Features

Easy to operate
Engraving software, engraving tool and vacuum attachment included
12-by-8-inch work area
USB port and cable included
Quiet operation

Boost Revenue with the Fastest Device in its Class

The EGX-30A Desktop Engraving Machine is powered by an advanced DC brushless motor and delivers the fastest production speeds in its desktop class. Whether you’re producing plaques or creating personalizing gifts and nametags, more speed ultimately translates into more profits.

Push-Button Automatic Engraving

With the EGX-30A and included Dr. Engrave software, you can design your badge, nameplate or plaque, generate the engraving path and output the finished product in a few simple clicks. Ease-of-use features include an automatic detection of material thickness and the ability to adjust the feed rate and spindle RPM by simply turning the knob located on the control panel.

Easy and Modern

If you’re still using old pantograph machinery, the EGX-30A is the perfect replacement to ease traditional engravers into simple, fast and versatile digital engraving technology. It has a low profile, small footprint and quiet operation with a 12-by-8-inch work area and industry-standard 0.125-inch diameter spindle to provide professional-grade precision and performance.

Software for Simplified Engraving

Dr. Engrave

Dr. Engrave is included in the purchase of the EGX-30A. Features include TrueType fonts and automatic layout tool for importing Excel and CSV files for quick engraving of nametags, product serial numbers, and all manner of door numbering projects. Dr. Engrave is compatible with Windows® 95/98/Me/NT4.0/2000/XP.

R-Wear Studio for rhinestone decoration

Optional software for the EGX-30A include R-Wear Studio that allows you to create templates for profitable rhinestone apparel decoration. Its features include a library of 500 hot-fix rhinestones and a job cost display for quick profit calculation and rhinestone inventory management.

Compatible software

The EGX-30A is compatible with most engraving programs on the market, including FlexiEngrave 8.51, EngraveLab v7.1, and TriPoint 9.6.

Product Specification

Model	EGX-30A
Max. operation area	12 x 8 1/16th in (305 x 205 mm)
Feed rate	1 15/16th in/sec. (50mm/sec.)
Mechanical resolution	0.000394 in/step (0.01mm/step), 0.0000492 in/step (0.00125mm/step) using micro step control.
Software resolution	0.000394 in/step (0.01mm/step)
Distance accuracy	0.000394 in/step (+/-0.1mm) or +/-0.5% of moving distance, Whichever is greater.
Right-angle accuracy	+/-0.000394in (12 1/16” in), +/-1mm (305mm)
Spindle motor	Brushless DC motor, maximum 27W
Revolution speed	5,000 to 10,000 rpm
Engraving tool mounting diameter	1/8in. (3.175mm)
Acceptable engraving materials	Plastics (ABS, Acrylic) and Brass and Aluminum for Scribing
Speed of tool up / down movement	1 per sec.
Interface	USB 1.1 (compliant with Universal Serial Bus Specification Rev. 1.1), Serial (RS-232C compliant)
LED	Operation indicators 2 (PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT,) Mode Indicators 2 (ENGRAVER/SCORE)
Control panel keys	↑,↓,←,→, SET SURFACE/TEST, PAUSE/VIEW, ORIGIN POINT/SET ORIGIN POINT, SELECT
Power requirements	Dedicated AC Adapter: AC 100 to 240V +/- 10% 50/60 Hz Machine: DC 24V, 0.7A
Acoustic noise level	Operation Mode: 70 dB (A) or less, Standby mode: 40dB (A) or less (According to ISO 7779)
External dimensions	20-1/4 in. (W) x 19-3/8 in. (D) x 8-9/16 in. (H) 513 mm (W) x 491 mm (D) x 217 mm (H)
Weight	13.2 kg (29.1 lb.)
Packed dimensions	34 in. (W) x 24 in. (D) x 12 in. (H) 863.6 mm (W) x 609.6 mm (D) x 304.8 mm (H)
Packed weight	37.5 lb. (17.0 kg)
Operation temperature	41 to 104°F (5 to 40°C)
Operation humidity	35 to 80% (no condensation)
Accessories	AC Adapter, Power cord, USB Cable, Dust collector hose and duct, Character cutter, Engraving-tool holder, Diamond scribe adapter, Hexagonal screw driver, Spanner, Hexagonal wrench, Test material, Adhesive sheet for securing material, Roland Software package CD-ROM, User’s manual
